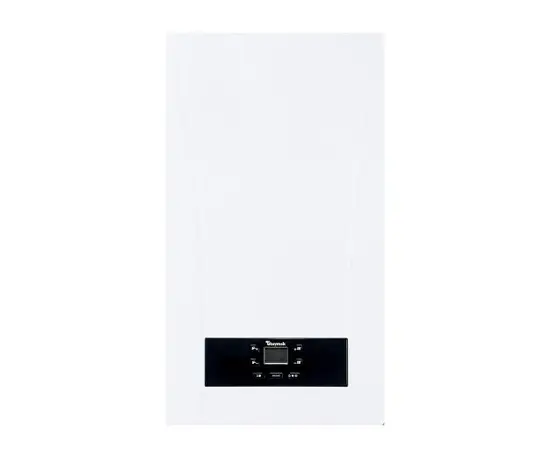

Gas boiler Baymak BYD-SE 24 kWt

Gas boiler Baymak BYD-SE 24 kWt

Specifications:

• Net heat output: 26.5 kW
• Min. Thermal power: 11 kW
• Estimated effective power: 24.8 kW
• Min. Effective power: 9.6 kW
• Max. Thermal pressure diagram: 3 bar
• Expansion memory capacity: 7 liters
• Temperature range of heating: 30-80 ° C
• Max. DHW pressure: 8 bar
• Min. Drain pressure: 0,15 bar
• Min. Hot water consumption: 2.5 l / min
• Hot water temperature range: 35-60 ° C
• DHW capacity (ΔT = 30 ° C): 10.7 l / min
• Chimney type: C12C32-C52-B22-C82-C42
• Diameter of coaxial fireplace: 60 mm
• Diameter of coaxial air diameter: 100 mm
• Diameter of one diameter: 80 mm
• Separate chimney diameter: 80 mm
• Max. Smooth gas temperature: 140 mm
• Type of gas: G20 - G30 / G31
• Natural gas consumption: 20 MB
• Liquid gas inlet pressure: 30 MB
• Frequency of electrical networks: 50 hours
• Rated electricity: 135 V.

Physical characteristics:
• Weight: 29 kg
• Dimensions (HxWxD): 704x400x300 mm
• Humidity Quality: IPX4D

Complete set:

• Copper Baymak BYD-SE 24

* The manufacturer reserves the right to make changes in the characteristics, color, configuration and design of the product without warning. The store is not responsible for the changes made by the manufacturer.
