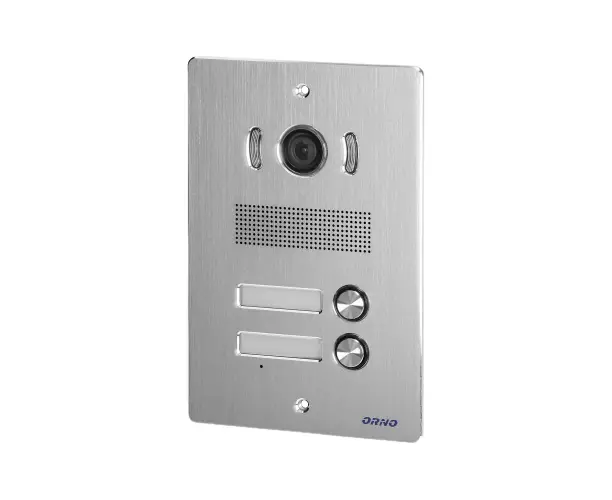

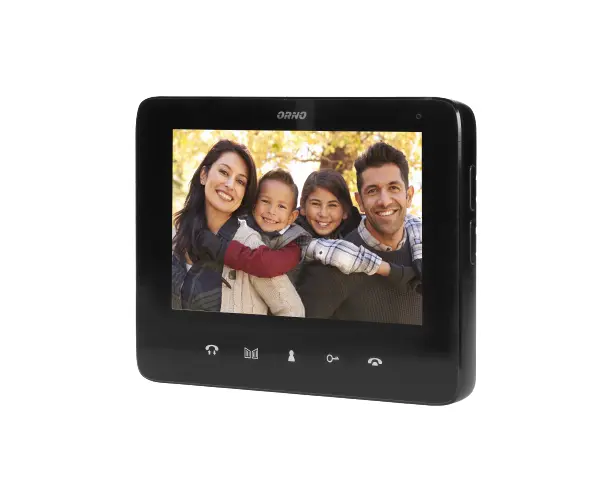

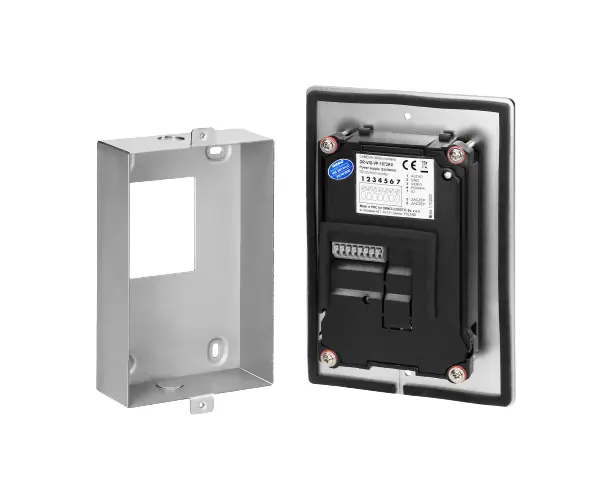

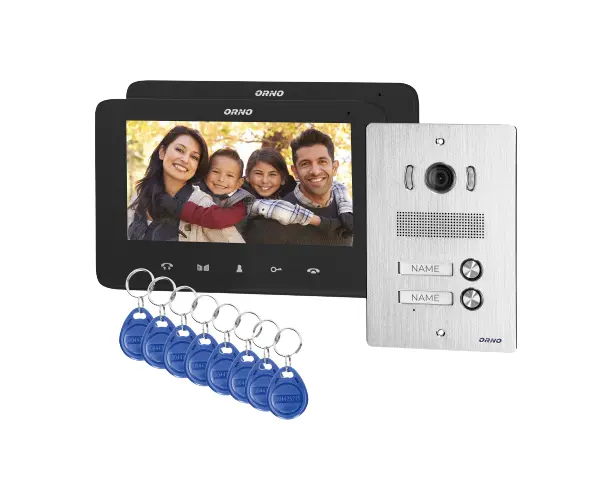

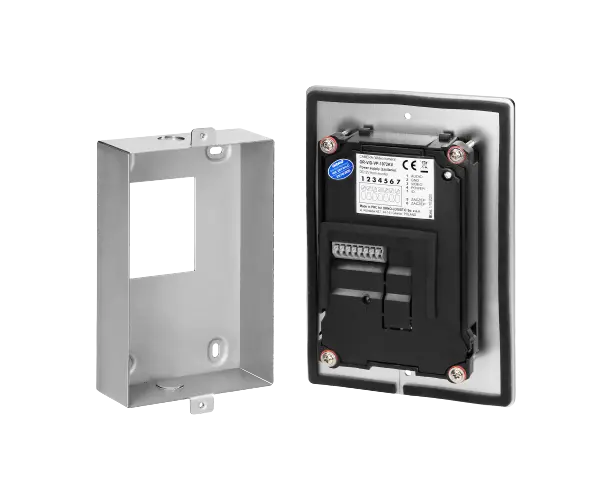

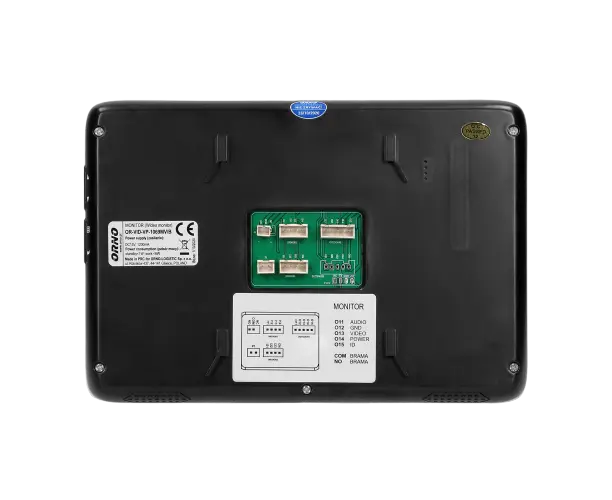

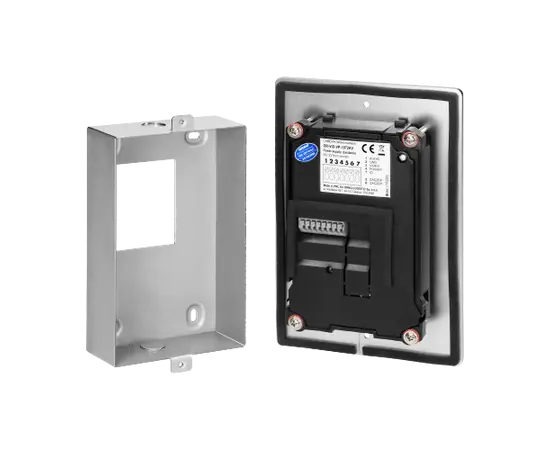

Video-doorphone set includes multicolour, ultra-flat 7" LCD monitor with a touch panel and backlit buttons. Monitor parameters (brightness and colour, speech and ringtone volume) can be adjusted. There are 16 ringtones to choose from and a CMOS camera. This device is suitable for flush-mounting, has got a protective roof, name plate and bright LED diodes that provide excellent night vision. The lock can be released with the use of a proximity tag. Additionally, the set can support gate opening and, if you connect an additional monitor to it, you can activate intercom function. DC power source from power supply unit to power outlet (15V DC) or optionally from DIN rail power supply (OR-VID-VP-1009ZD). Electric strike suitable for 12V DC and power consumption of max. 300mA does not require additional power supply.
Technical characteristics:
• Manufacturer: ORNO
Additional features:
• Camera viewing angle vertical/horizontal: 65°/90°
• Camera resolution: 420 TVL
• Number of ringtones: 16
• Screen: 7"
Physical parameters:

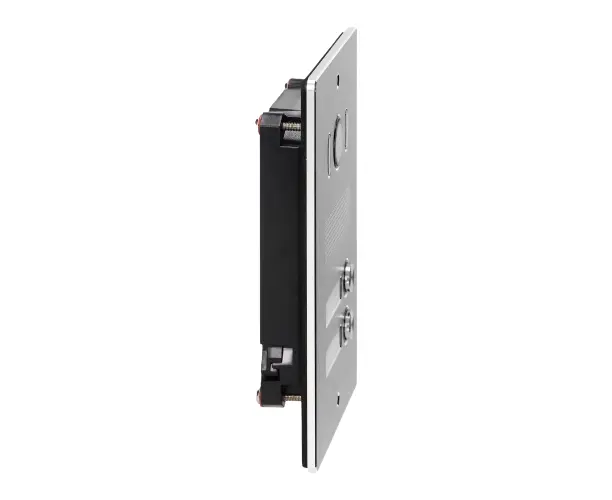

• Outer panel depth: 48 mm
• Outer panel width: 122 mm
• Outer panel height: 182 mm

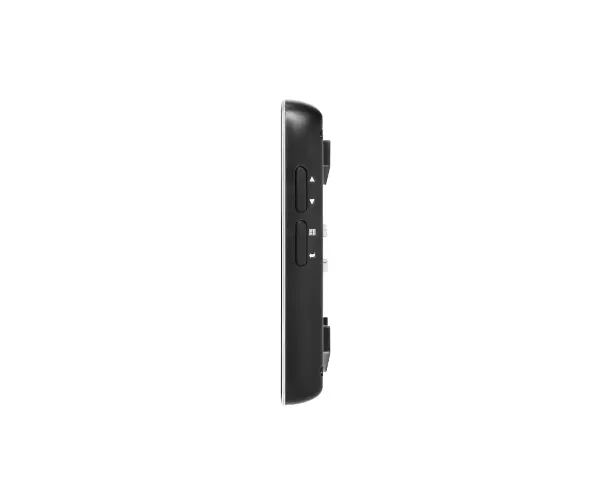

• Monitor width: 200 mm
• Monitor height: 138 mm
• Monitor depth: 23 mm
* The manufacturer reserves the right to make changes in the characteristics, color, configuration and design of the product without warning. The store is not responsible for the changes made by the manufacturer.
