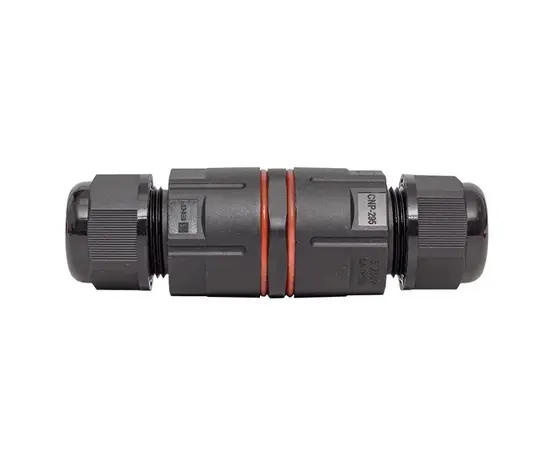

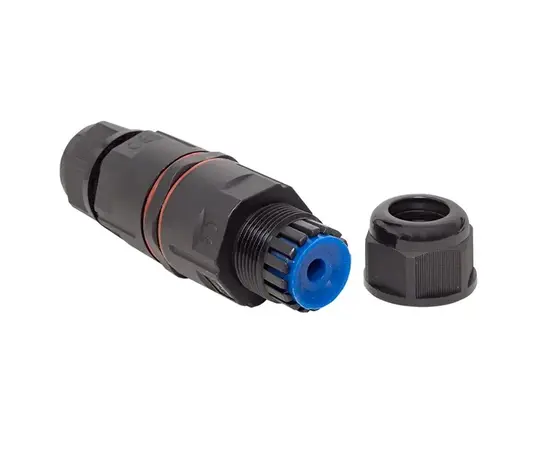

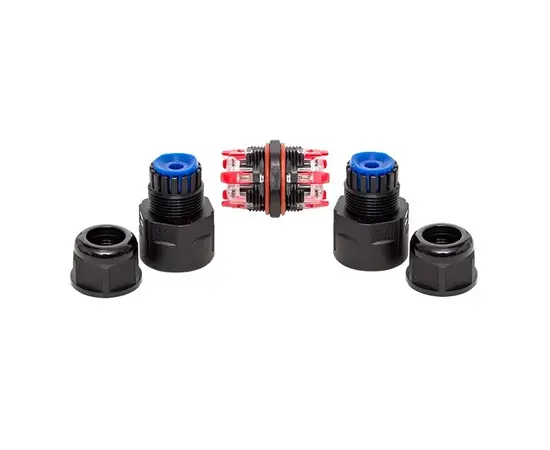

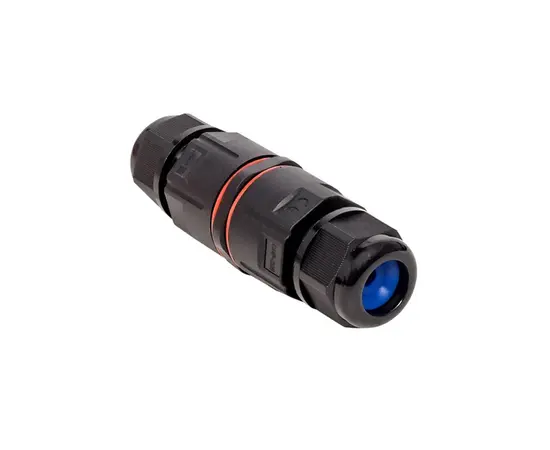

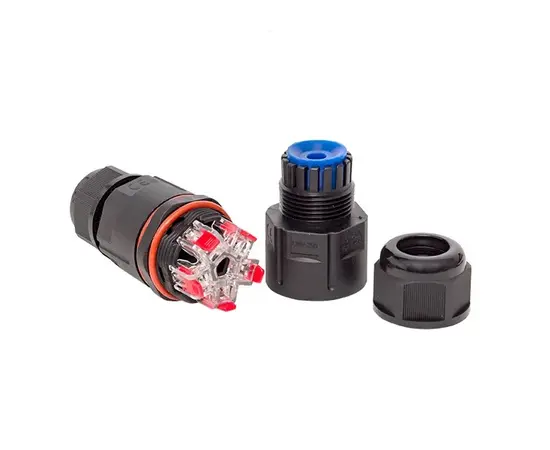

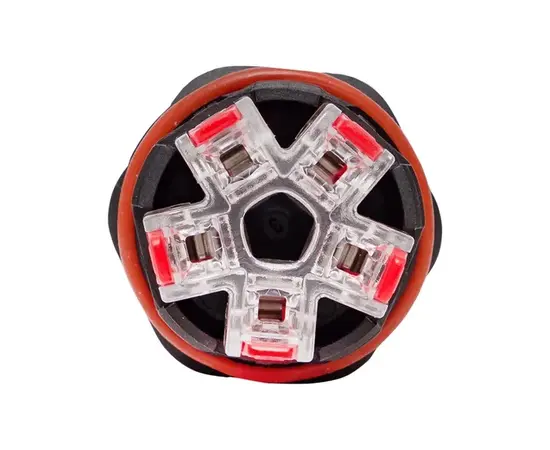

Connector EKF CCT2-SMK5 FREETOOLS PROXIMA I-shaped IP68
Cable connectors I-shaped IP68 FreeTools EKF are designed to connect conductors that require complete tightness of the electrical circuit. They are used to connect two cables located outdoors, as well as in places with high humidity, can be used underwater and underground at a depth of up to 1 m without the risk of losing the quality of the connection.
Technical characteristics:
• Manufacturer: EKF
• Number of conductors: 5
Additional features:
• Protection class: IP68
Physical parameters:
• Nominal branch cable conductor cross-section: 0.5...2.5 mm²
• Nominal main cable conductor cross-section: 0.5...2.5 mm²
• Main cable diameter: 5...12 mm²
• Branch cable diameter: 5...12 mm²
* The manufacturer reserves the right to make changes in the characteristics, color, configuration and design of the product without warning. The store is not responsible for the changes made by the manufacturer.
