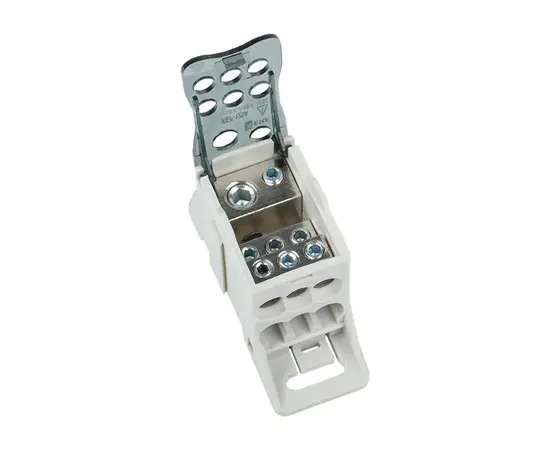

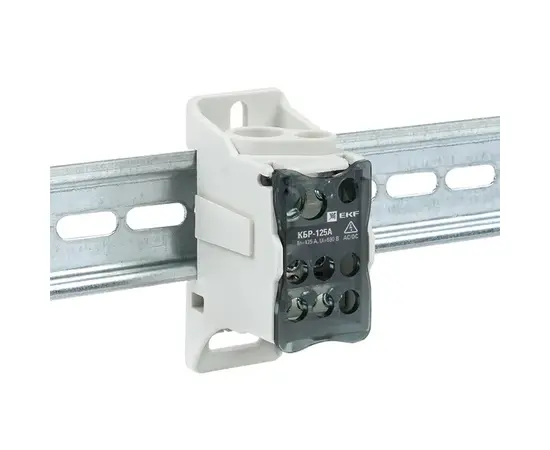

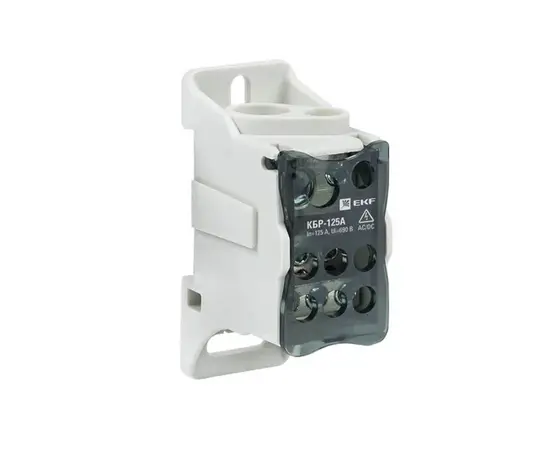

Terminal block EKF KBR on DIN rail 125A
The process of creating EKF brand products is based on innovative technologies and vast experience in development and engineering, according to regulatory standards.
Specifications:
• Manufacturer: EKF
Additional characteristics:
• Nominal current: 125A
• Cross-section of flexible conductor (stranded) with cable clamp: 16...35 mm²
• Cross-section of rigid conductor (single/stranded): 16...35 mm²
Physical parameters:
• Length: 80 mm
• Width: 50 mm
• Height: 30 mm
* The manufacturer reserves the right to make changes in the characteristics, color, configuration and design of the product without warning. The store is not responsible for the changes made by the manufacturer.
