A unique innovative phase switching system VTS (Voltage Transfer Switch) with the same power for single-phase (230V) and three-phase (400V) consumers. Each mode has its own circuit breaker. The generator has the ability to connect an ATS system (automatic transfer). High engine power allows you to get the declared power and maintain stable operation under any load. HEAVY DUTY - increased work resource. The heating function makes it easy to start the engine in winter. Ergonomic control panel. Intelligent voltage stabilization system AVR. Additional strengthening of a frame. Shock absorbers to reduce vibration.
Specifications:
• Manufacturer: Konner&Sohnen
• Power maximum/nominal (230V): 5.5/5 kW
• Power maximum/nominal (400V): 6.5/6 kW
• Engine capacity: 456 cm³
Additional characteristics:
• Voltage: 230/400, 50Hz
• Current 230/400 V: 23.04/11.74 A
• Outlets: 12V 12/8.3 А
• Average working time (power 50%): 6.9 h
• LED display
• Noise level Lpa (7 m)/Lwa: 71/96 dB
• Engine type: diesel powered one-cylinder, four-stroke air-cooled
• Engine model: KS 480HD
• Engine power: 14 hp / 10.3 kW
• Preheater
• Fuel tank volume: 11 l
• Crank case volume: 1.65 l
• Intelligent voltage stabilization system AVR
• Engine start: manual/electric

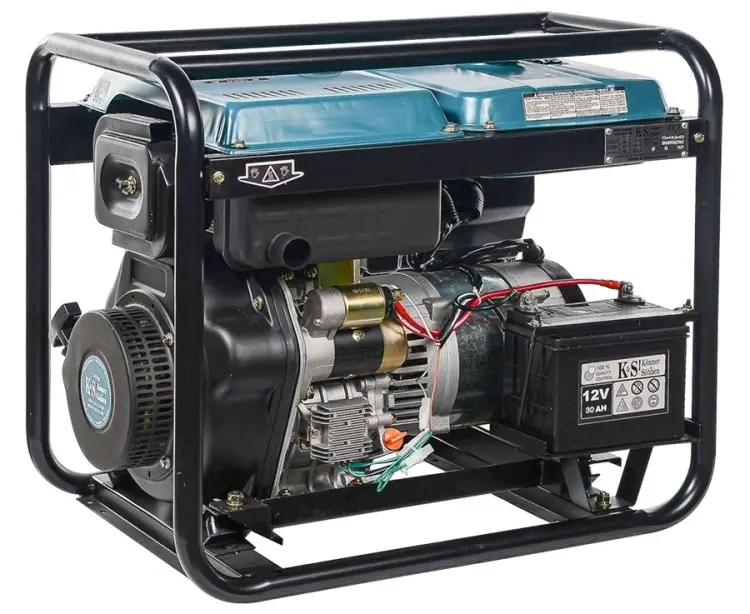

• Accumulator: 30 Ah
• Ability to connect АВР (6-Pin)
• Protection class: IP23M
Physical parameters:
• Rounded frame: 32 mm
• Size: 730х495х630 mm
• Weight: 117 kg
* The manufacturer reserves the right to make changes in the characteristics, color, configuration and design of the product without warning. The store is not responsible for the changes made by the manufacturer.
