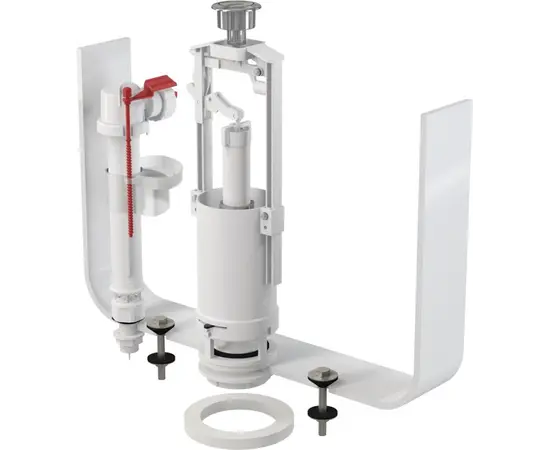

Alcadrain SA2000S is designed for ceramic flushing cistern. Built-in filter, smooth closing of the mechanism, adjustable water level, low sensitivity to pressure drops in the water supply. The design allows optimum height adjustment of the valve according to the height of the cistern.
Technical characteristics:
• Manufacturer: Alcadrain
Additional characteristics:

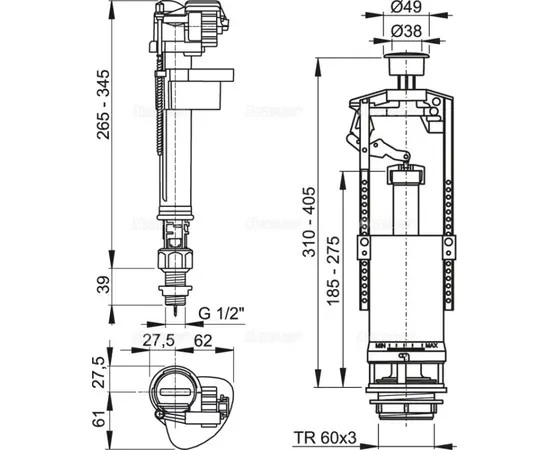

• Height adjustment range 310 – 405 mm
• Functional requirements class: I
• Acoustic group II: <30 dB
• Working range: 0.05–0.8 MPa
• Recommended operating pressure: 0.5–0.8 MPa
• Flush mechanism START/STOP
• STOP button to adjust the amount of discharged water
• Option of the setting the button off the axis of the valve
• START/STOP chrome button
Equipment:
• Inlet fill valve A17-1/2”
• Flush valve A2000
• Seal kit
• Fixation set: screw M8×65 2 pcs
Physical parameters:
• Plastic thread: 39 mm
* The manufacturer reserves the right to make changes in the characteristics, color, configuration and design of the product without warning. The store is not responsible for the changes made by the manufacturer.
